Calculation Summary

To calculate the roof pitch, we need to understand the formulas and calculations involved. Here is a step-by-step explanation of how the result is calculated:

Conversion of Units

First, we need to convert the rise and run values to a common unit of measurement. The available units are centimeters (cm), meters (m), inches (in), feet (ft), and yards (yd). We will use the following conversion factors:
- 1 cm = 0.01 meters
- 1 m = 1 meter
- 1 in = 0.0254 meters
- 1 ft = 0.3048 meters
- 1 yd = 0.9144 meters

Calculation of Slope in Radians

Once we have the rise and run values in meters, we can calculate the slope in radians using the formula:
- Slope (radians) = arctan(rise / run)

Conversion of Slope to Degrees

Next, we convert the slope from radians to degrees using the formula:
- Slope (degrees) = Slope (radians) * (180 / π)

Formatting the Slope

To format the slope in various representations, we perform the following calculations:

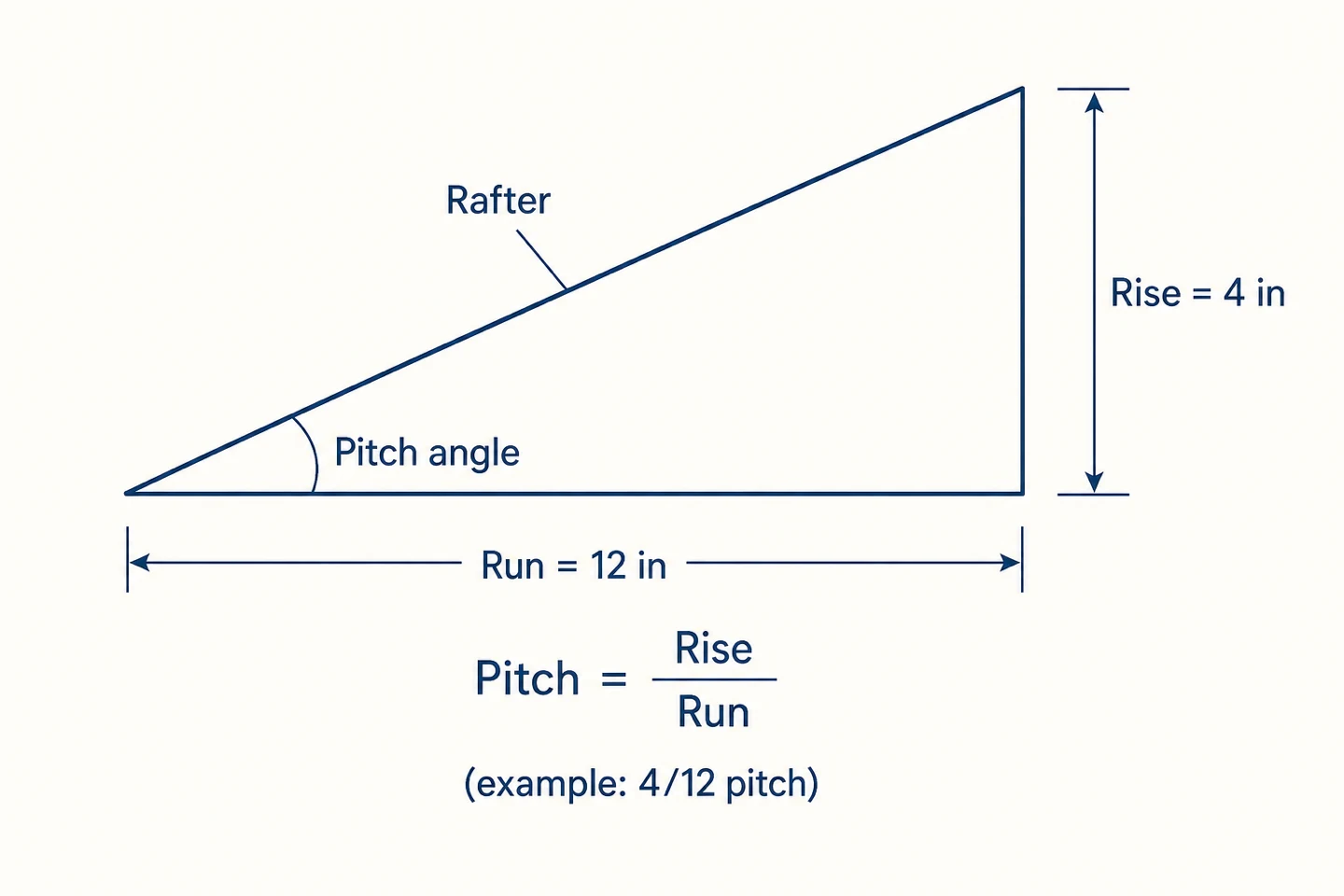

- Pitch: The rise value represents the vertical distance for a run of 12 units. So, we calculate the pitch using the formula:
- Pitch = rise / 12
- Grade (slope): The grade is the slope expressed as a percentage. We calculate it using the formula:
- Grade (slope) = tan(Slope (degrees)) * 100
- Radians: We round the slope in radians to 6 decimal places.

Return of Formatted Results

Finally, we return an object with the formatted results, including the degrees, pitch, grade (slope), and radians.

Examples

Here are a few examples to illustrate the calculations:
Example 1:
Given rise = 10.12 cm and run = 5 m
- Convert rise to meters: riseInMeters = 10.12 * 0.01 = 0.1012 m
- Convert run to meters: runInMeters = 5 * 1 = 5 m
- Calculate slope in radians: slopeInRadians = arctan(0.1012 / 5)
- Convert slope to degrees: slopeInDegrees = slopeInRadians * (180 / π) = 11.471780028943423 degrees
- Calculate pitch: pitch = 0.1012 / 12 = 0.008433333333333333
- Calculate grade (slope): grade = tan(11.471780028943423) * 100 = 20.000000000000004%
- Round radians to 6 decimal places: radians = 0.041667
- Return formatted object: { 'Pitch': '0.008:12', 'Degrees': '11.472°', 'Grade (slope)': '20.000%', 'Radians': '0.041667' }
Example 2:
Given degrees = 30.5
- Convert degrees to decimal: degrees = 30.5
- Calculate slope in radians: slopeInRadians = arctan(tan(30.5 * π / 180))
- Convert slope to degrees: slopeInDegrees = slopeInRadians * (180 / π) = 30.5 degrees
- Calculate pitch: pitch = tan(30.5 * π / 180) * 12
- Calculate grade (slope): grade = tan(30.5 * π / 180) * 100
- Round radians to 6 decimal places: radians = 0.532324
- Return formatted object: { 'Pitch': '6.000:12', 'Degrees': '30.500°', 'Grade (slope)': '58.824%', 'Radians': '0.532324' }

Conclusion

By following these calculations, we can determine the roof pitch based on the provided rise and run values or the angle in degrees.

Home Renovation

The roof pitch is an important factor to consider when planning a home renovation. It refers to the steepness or slope of the roof. The roof pitch affects various aspects of the renovation project:

• Aesthetics: The roof pitch can greatly impact the overall appearance of the house. Different roof pitches have different architectural styles and can give a home a unique look.
• Interior Space: The roof pitch determines the height of the ceiling and the available space in the attic. A steeper roof pitch may provide more usable space for storage or additional living areas.
• Roofing Materials: The roof pitch affects the choice of roofing materials. Certain materials are better suited for steep pitches, while others are more suitable for low pitches.
• Drainage: The roof pitch plays a crucial role in proper water drainage. A steep pitch allows water to flow off the roof more efficiently, reducing the risk of leaks and water damage.
• Energy Efficiency: The roof pitch can impact the energy efficiency of the home. A steeper pitch may provide better ventilation and natural light, reducing the need for artificial heating and lighting.

Considering the roof pitch during a home renovation is essential to ensure the structural integrity, functionality, and overall aesthetics of the house.

Roof Replacement

The roof pitch refers to the steepness or slope of a roof. It is typically measured in terms of the vertical rise of the roof for every horizontal foot. The roof pitch plays a significant role in roof replacement for several reasons:

• Material selection: The roof pitch determines the type of roofing materials that can be used. Steeper pitches may require specific materials to ensure proper water drainage and prevent leaks.
• Installation complexity: The pitch of the roof affects the complexity of the installation process. Steeper pitches may require additional safety measures and specialized equipment, which can increase the cost and time required for roof replacement.
• Water runoff: The roof pitch determines how quickly water runs off the roof. A steeper pitch allows water to drain more efficiently, reducing the risk of water pooling and potential damage to the roof structure.
• Aesthetics: The roof pitch also affects the overall appearance of a house. Different roof pitches can complement the architectural style and enhance the curb appeal of a property.

When planning a roof replacement, it is essential to consider the roof pitch and consult with roofing professionals to ensure the appropriate materials and installation methods are used.

Construction Projects

The roof pitch refers to the steepness or slope of a roof. It is typically expressed as a ratio of vertical rise to horizontal run. The roof pitch plays a crucial role in construction projects and affects various aspects of the building process.

Here are some ways in which the roof pitch impacts construction projects:

• Structural Design: The roof pitch determines the structural design of the roof. Steeper pitches require stronger framing and additional support to handle the increased weight and wind loads. The pitch also affects the overall height and shape of the building.
• Drainage: The pitch of the roof determines how effectively it can drain water. A steeper pitch allows water to flow off the roof more quickly, reducing the risk of leaks and water damage. Proper drainage is essential for maintaining the integrity of the building.
• Materials and Costs: The roof pitch affects the choice of roofing materials and the overall cost of the project. Steeper pitches may require specialized materials and installation techniques, which can be more expensive. Additionally, the pitch affects the amount of roofing material needed.
• Aesthetics: The roof pitch contributes to the overall aesthetics of the building. Different pitches can create different architectural styles and visual appeal. The pitch should complement the design and style of the structure.
• Attic Space: The roof pitch impacts the usable space in the attic. Shallower pitches may limit the headroom and usable area, while Steeper pitches provide more space for storage or living areas.

Considering the roof pitch is essential during the planning and design phase of a construction project. It influences the structural integrity, functionality, and appearance of the building.

Real Estate

The roof pitch can have an impact on real estate in several ways. Firstly, it affects the overall aesthetic appeal of a property. A steep roof pitch can give a house a more dramatic and visually appealing look, which can be attractive to potential buyers.

Secondly, the roof pitch can affect the functionality of the property. A steeper roof pitch allows for better water drainage, which can be beneficial in areas with heavy rainfall or snowfall. It also provides more attic space, which can be utilized for storage or additional living areas.

Additionally, the roof pitch can impact the energy efficiency of a property. A steeper roof pitch allows for better ventilation and can help with heat dissipation, reducing the need for excessive air conditioning in hot climates.

Lastly, the roof pitch can affect the cost of construction or renovation. A steeper roof pitch requires more materials and labor, which can increase the overall cost of the property. However, it can also add value to the property and potentially result in a higher resale price.

Insurance Purposes

The roof pitch can affect insurance purposes in several ways:

• A steeper roof pitch is generally considered more desirable by insurance companies because it helps with water drainage and reduces the risk of water damage. As a result, insurance premiums may be lower for homes with a steeper roof pitch.
• A flatter roof pitch, on the other hand, can increase the risk of water pooling and potential leaks. Insurance companies may view homes with flatter roof pitches as higher risk, leading to higher insurance premiums.
• The roof pitch can also impact the durability and longevity of the roof. Steeper roof pitches tend to shed snow and debris more easily, reducing the likelihood of structural damage. Insurance companies may take this into account when determining coverage and premiums.
• In some cases, insurance companies may have specific requirements or guidelines regarding roof pitch. They may require certain minimum roof pitches for coverage or offer discounts for homes with specific roof pitch requirements.

It's important to check with your insurance provider to understand how roof pitch specifically affects your insurance coverage and premiums.
